LP1-D(CJX2-Z) SERIES DC CONTACTOR直流接触器

    • 1
    • 2

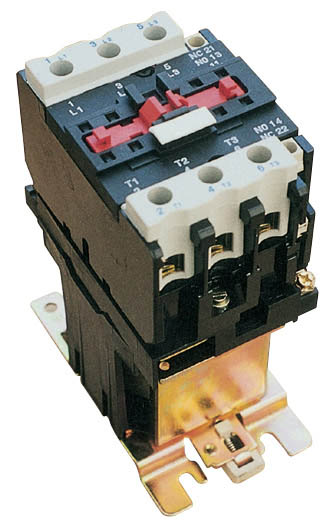

LP1-D1

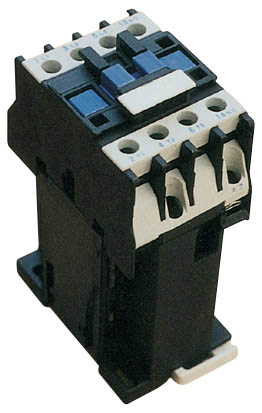

LP1-D2


Application:
CJX2-Z(LP1-D) series DC operated AC contactor is suitable for use in the circuits up to rated voltage 660V AC 50HZ or 60HZ, and in rated current 9-95A in AC-3/380v load circuits. For remote controlling circuit making,breaking and frequent starting AC motors. It can be also combined with the auxiliary contact group, air delayer, thermal relay devices etc.
It has specialties of equable & reliable action, quict while working.

Type
Power
Coil voltage
CJX2-09Z~95Z
DIRECT CURRENT
24
48
110
220
380
BD
ED
FD
MD
QD

Specification:
Type
Rated working current A(AC-3,380V)
Controlled power
Number of the contacts
220V
380V
415V
440V
660V
LP1-D09
9
2.2
4
4
4
5.5
3P+NO
or
3P+NC
LP1-D12
12
3
5.5
5.5
5.5
7.5
LP1-D18
18
4
7.5
9
9
9
LP1-D25
25
5.5
11
11
11
15
LP1-D32
32
7.5
15
15
15
18.5
LP1-D40
40
11
18.5
22
22
30
3P+NO +NC
LP1-D50
50
15
22
25
30
33
LP1-D65
65
18.5
30
37
37
37
LP1-D80
80
22
37
45
45
45
LP1-D95
95
25
45
45
45
45
